ARH Headers installed with Roto-Fab covers

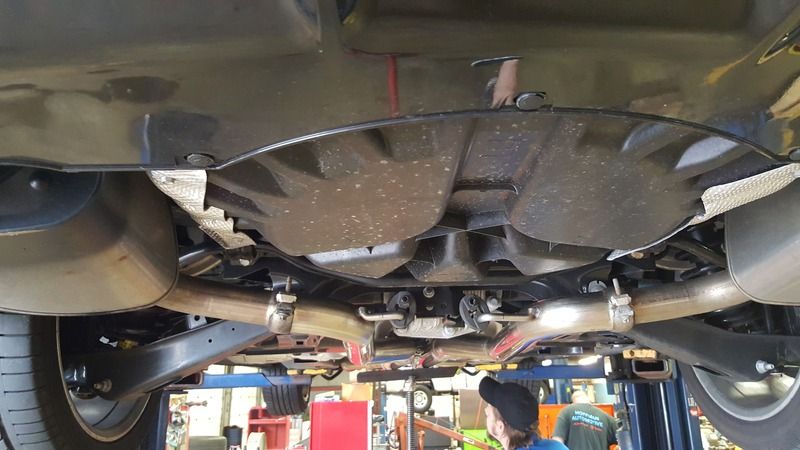

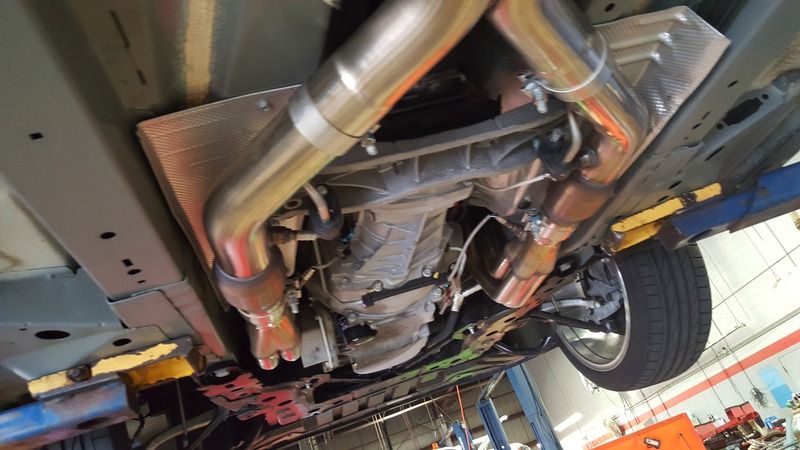

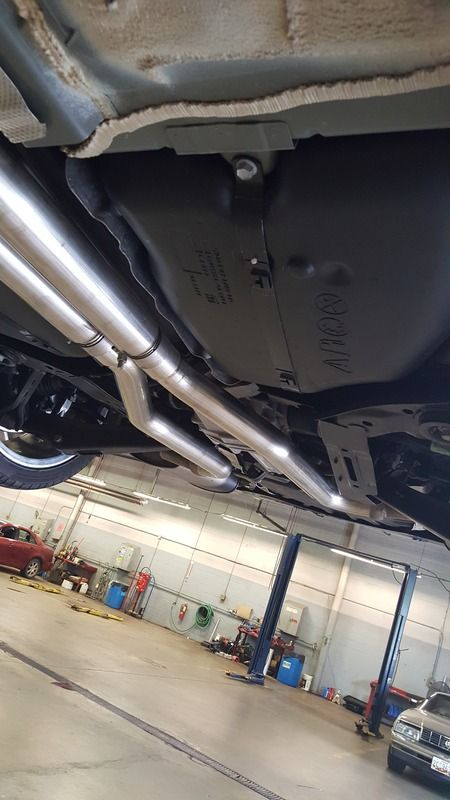

Want to give a shout out to @RDP Store for the fast shipping of the ARH long tube system, wires and boots and @LivernoisMotorsports for the updated 93 octane tune! Had my headers installed at a shop cause I was not going to do this on my back. Only slight snag in the install was that the x-pipe was installed the wrong way and the exhaust wasn't tucked away in the tunnel and I was not able to get my granatelli brace on. Went back and we switched it and now the brace fits but I did have to use the spacers that came with the headers.

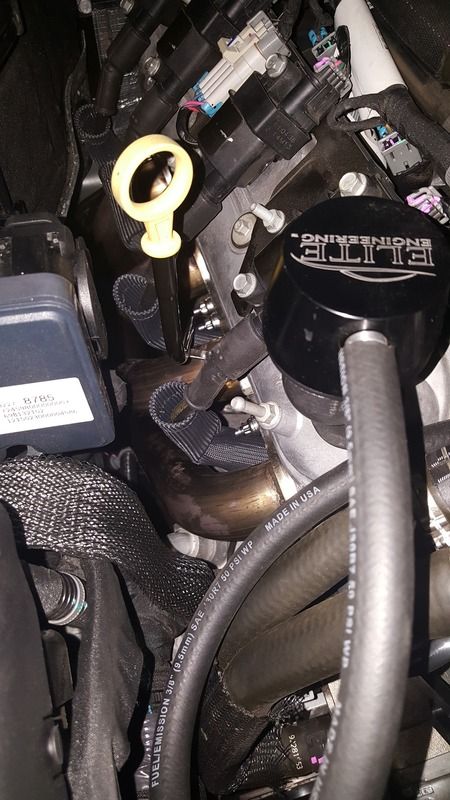

The car now moves that way it should've done from the factory! I did the 1-7/8 longtubes, high flow cats and mid-pipe system. Also added taylor wires with the DEI protectant boots. Driving around town and on the highway she sounds just like stock. Once you hit WOT above 3k...then all that evil is unleashed!! I was debating on getting the ARH axlebacks but I love the way she sounds now!! I will get a sound clip later. FYI...I got caught in the torrential down pour earlier today and when that rain hit that hot exhaust it sounds like a pipe is off the car!! Once it is dry you are good to go. Just a forewarning for you guys. Here are a few cell phone pics. Enjoy






Mndev likes this.

The DD: 2006 Honda Civic LX (modded)
The Wife's car: 2012 Mazda CX-9
The Heavy Hauler: 2005 Silverado Ext Cab (modded)
The Toy: 2015 Mystic Green SS, 6spd, sunroof, full spare, Roto-fab intake, VMAX TB, ARH 1-7/8 Long Tubes , Livernois Stage 2 N/A build, Livernois 93 octane tune, and many more goodies.
05on20s is online now
Sponsored Links
Advertisement

post #2 of 20 (permalink) Old 06-16-2017, 10:04 PM
Senior Member

2lazy4agoodname's Avatar

Join Date: Feb 2016
Location: Staten Island, NY
Posts: 206

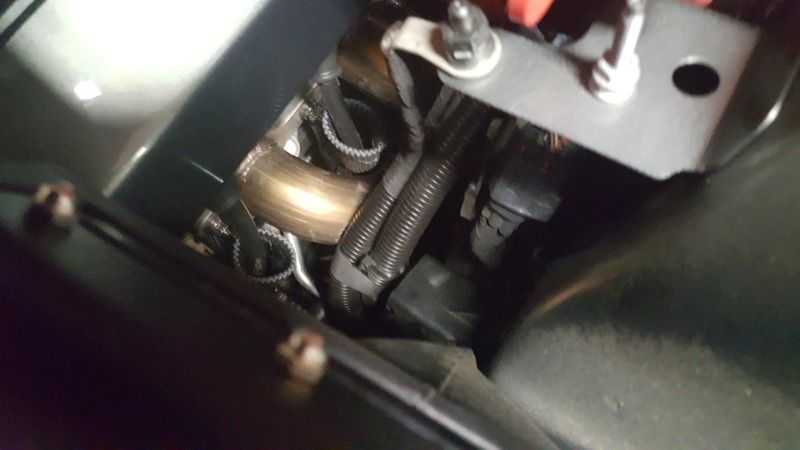

Ziptie that harness away from the header. The clips that hold it to the body are weak.

Sent from my SM-N920V using Tapatalk
05on20s likes this.

16 SSB SS A6
VCM, KOOKS, 3" Solo, RCR MANI & TB, RCR Tune, King Springs, VMR
11.90 @ 119 - BOLT ONS
09 PBM G8 GT -
Built By Rick Crawford Racing
404 Stroker / Ported LSA Blower / Built Trans / Billet Circle D / Alky Methanol
RCR Heads & Cam / TPIS TB / ATI Balancer / Vaporworks & V Pump
Solo / CTS-V Brembos / BMR / VMR V701 / H&R Coilovers / Holden SSV Conversion

9.82 @ 141
09 WH GXP M6 (#1827 of 1829)
Roto-Fab / Solo Mach Shorty
2lazy4agoodname is offline
post #3 of 20 (permalink) Old 06-16-2017, 10:25 PM Thread Starter
Senior Member

Join Date: Feb 2016
Location: Clinton, MD
Posts: 692
Garage
Quote:
Originally Posted by 2lazy4agoodname View Post
Ziptie that harness away from the header. The clips that hold it to the body are weak.

Sent from my SM-N920V using Tapatalk
Good eye sir. Complete. Looks like it took some off but the wire is still fine.

Sent from my SM-N920P using Tapatalk
2lazy4agoodname likes this.

The DD: 2006 Honda Civic LX (modded)
The Wife's car: 2012 Mazda CX-9
The Heavy Hauler: 2005 Silverado Ext Cab (modded)
The Toy: 2015 Mystic Green SS, 6spd, sunroof, full spare, Roto-fab intake, VMAX TB, ARH 1-7/8 Long Tubes , Livernois Stage 2 N/A build, Livernois 93 octane tune, and many more goodies.
05on20s is online now

post #4 of 20 (permalink) Old 06-16-2017, 11:40 PM
Senior Member

iratollah's Avatar

Join Date: Apr 2016
Location: Texas!
Posts: 2,176

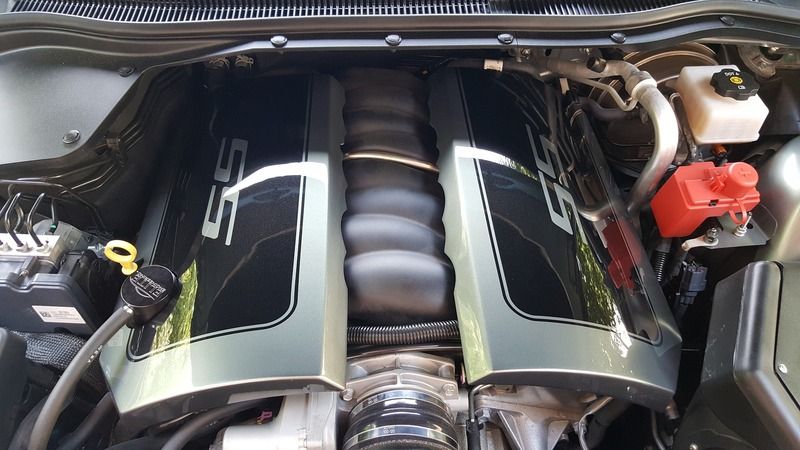

Those covers look great! Bet it's a lot harder to sneak the car out at night after putting the headers on.
05on20s likes this.

it's socially unacceptable to be ahead of your time.
The White Lion: 2015 Heron White, sunroof, spare, #73 of 277 as configured, #827 of 3,168 built
No mods: 100% Houston Stock
iratollah is offline
post #5 of 20 (permalink) Old 06-17-2017, 07:01 AM Thread Starter
Senior Member

Join Date: Feb 2016
Location: Clinton, MD
Posts: 692
Garage
Quote:
Originally Posted by iratollah View Post
Those covers look great! Bet it's a lot harder to sneak the car out at night after putting the headers on.
Lol, it's actually not too bad. Cold startup is louder though.

Sent from my SM-N920P using Tapatalk

The DD: 2006 Honda Civic LX (modded)
The Wife's car: 2012 Mazda CX-9
The Heavy Hauler: 2005 Silverado Ext Cab (modded)
The Toy: 2015 Mystic Green SS, 6spd, sunroof, full spare, Roto-fab intake, VMAX TB, ARH 1-7/8 Long Tubes , Livernois Stage 2 N/A build, Livernois 93 octane tune, and many more goodies.
05on20s is online now
post #6 of 20 (permalink) Old 06-17-2017, 08:12 AM
Senior Member

speedrye's Avatar

Join Date: Oct 2015
Location: Central NC
Posts: 1,663
Quote:
Originally Posted by 2lazy4agoodname View Post
Ziptie that harness away from the header. The clips that hold it to the body are weak.
Sent from my SM-N920V using Tapatalk
Quote:
Originally Posted by 05on20s View Post
Good eye sir. Complete. Looks like it took some off but the wire is still fine.
Sent from my SM-N920P using Tapatalk
There's a black plastic spacer between the wiring harness and body sheet metal in both of those pictures. Is there any reason not to remove it so that you can get the wiring harness even farther away? It pretty much just pops out.


2016 HW 5 wheels, 4 doors, 3 pedals #2060, #43 of 50
speedrye is offline
post #7 of 20 (permalink) Old 06-17-2017, 08:15 AM Thread Starter
Senior Member

Join Date: Feb 2016
Location: Clinton, MD
Posts: 692
Garage
Quote:
Originally Posted by speedrye View Post
There's a black plastic spacer between the wiring harness and body sheet metal in both of those pictures. Is there any reason not to remove it so that you can get the wiring harness even farther away? It pretty much just pops out.
Do you guys have that plastic piece? Want to make sure I know what it is for before I actually remove it.

Sent from my SM-N920P using Tapatalk

The DD: 2006 Honda Civic LX (modded)
The Wife's car: 2012 Mazda CX-9
The Heavy Hauler: 2005 Silverado Ext Cab (modded)
The Toy: 2015 Mystic Green SS, 6spd, sunroof, full spare, Roto-fab intake, VMAX TB, ARH 1-7/8 Long Tubes , Livernois Stage 2 N/A build, Livernois 93 octane tune, and many more goodies.
05on20s is online now
post #8 of 20 (permalink) Old 06-17-2017, 08:42 AM
Senior Member

2lazy4agoodname's Avatar

Join Date: Feb 2016
Location: Staten Island, NY
Posts: 206
Not really sure what the plastic piece is. You get plenty of clearance once its ziptied away so I would just leave it.

Sent from my SM-N920V using Tapatalk
05on20s likes this.

16 SSB SS A6
VCM, KOOKS, 3" Solo, RCR MANI & TB, RCR Tune, King Springs, VMR
11.90 @ 119 - BOLT ONS
09 PBM G8 GT -
Built By Rick Crawford Racing
404 Stroker / Ported LSA Blower / Built Trans / Billet Circle D / Alky Methanol
RCR Heads & Cam / TPIS TB / ATI Balancer / Vaporworks & V Pump
Solo / CTS-V Brembos / BMR / VMR V701 / H&R Coilovers / Holden SSV Conversion

9.82 @ 141
09 WH GXP M6 (#1827 of 1829)
Roto-Fab / Solo Mach Shorty
2lazy4agoodname is offline
post #9 of 20 (permalink) Old 06-17-2017, 08:56 AM
Senior Member

SaberOne's Avatar

Join Date: Feb 2017
Location: YUMA, AZ
Posts: 1,175
Garage
Nice set-up! I ordered the same ARH configuration and Roto-Fab CAI, so this thread and photos are helpful. I have a different Catch Can (still in the box), and I still need the wire insulators.
05on20s likes this.

2017 White No-Sun A/T Spare | Current: 27k | Tint & Film | Undercoating | Blk-Out Trim |Forgeline Wheels | Recaro Seats | Insulation | Tow Bar | Frame Connectors | Spyder Tail Lights | Lift Pads | HD Trunk Springs |

Last edited by SaberOne; 06-17-2017 at 09:46 AM. Reason: appended content
SaberOne is online now
post #10 of 20 (permalink) Old 06-17-2017, 10:52 AM Thread Starter
Senior Member

Join Date: Feb 2016
Location: Clinton, MD
Posts: 692
Garage
Quote:
Originally Posted by SaberOne View Post
Nice set-up! I ordered the same ARH configuration and Roto-Fab CAI, so this thread and photos are helpful. I have a different Catch Can (still in the box), and I still need the wire insulators.
Make sure you tuck that exhaust up there good. Started the car this morning and I hear a slight rattling and I can see it touching the brace. Gonna put it back on a lift and get this resolved.
